The Spinnaker

The Wayfarer spinnaker is often regarded as the glamour sail and can cause more problems than either the main or the genoa. These problems stem partly from its spherical shape, partly from an apparent lack of control (just three rather thin control lines), and partly from an inherent fear that spinnakers are dangerous flappy things that cause capsizes.

True, the sail can be hard to hoist and to set properly, but when handled correctly, the spinnaker adds much to the sheer exhilaration of offwind sailing. It gives extra speed to enable the boat to surf further and faster on waves that otherwise would be missed. It increases the importance of the crew whose spinnaker handling can make a real and obvious contribution to boat speed. Finally, with colour schemes and panel layout, it also allows a measure of individuality to be expressed.

Just as with the other two sails, it is necessary first to see how the sail works, and then, by careful preparation ashore and correct use afloat, get the spinnaker to do its job properly.
Like the fore and aft sails, spinnakers are most efficient when reaching and broad reaching with the air flowing over both surfaces. On the run, when just one surface is used, it simply becomes presented area.

This is demonstrated at open meetings. On the run, the boats with spinnakers often do not seem to gain on those without. Although at times, the extra area can just get the boat to plane, making the difference a little more marked. However, all this changes on a reach when the spinnaker boats, as they leap onto the plane, leave their less well endowed sisters wallowing behind.

The principle of spinnaker design is simple as the sail has to be symmetrical about its vertical centre line. The more curve to that line, the fuller the sail, while the less curve, the flatter the sail. It is in fact, a segment of a circle, and so, the bigger the sail, the greater the arc.
This consideration has in fact led to a decrease in the cross width area of spinnakers. It has been found that a smaller, flatter sail can be more efficient, even on a run because the edges do not have to be tight and the air can escape more easily. It also means that the sail can be flown on closer reaches without collapsing since the flatter angle of attack lets the air accept the leading curves more easily.

The most popular panel layout is the Crosscut design where the panels run horizontally. Since they leave the centreline at right angles and overlap at the edges, fullness can be created.

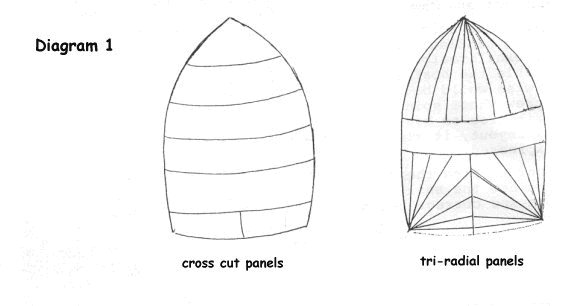

See diagram 1.

The particular advantage of this system is the fact that the number of panels is kept to a minimum. Thus, the sails are light and at the same time, the flow can be positioned accu-rately. Unfortunately however, the upper leeches are prone to stretch where the cloth thread lines are across the bias.

For this reason a range of well resinated cloths have been developed. By blocking the pores between the fibres, the resin prevents the weave from becoming distorted. HST 46 and Dynac are excellent examples of this type of material.

A tri-radial design copied from keelboats has been in-creasingly used in recent years. The idea behind this con-struction is that the threadlines of each panel radiating from the three corners take the load along their axis. See diagram 1.

The particular advantages of this design are that the sail lasts a long time and performs especially well in a breeze. It is rather heavier than the crosscut and the extra seams can be prone to snagging.

The important things to remember here are:
a) to get the sail as flat as possible which keeps the angle of attack shallow as well as opening the leech to leeward to stop the mainsail backwinding
b) to keep friction down to a minimum in the control lines set-up.

To get the spinnaker as flat as possible, it is necessary to organize the sheeting and pole position. The spinnaker needs to be hoisted as high as possible. Do not tie a knot in the halliard just above the head to keep the head away from the mast. A knot could also jam in the halliard exit sheave. Incidentally, the pole should always be clipped on to the mast eye with the piston part uppermost. This means that the crew doesn’t have to lift the pole up and over when setting, or up and out when lowering. It also means that the spinnaker sheet is running over the solid part at the outer end, and not the piston.

The spinnaker pole uphaul has to control the height of the pole and needs to be adjustable. There are various ways of attaching it to the pole. The most suitable depends upon where the pole is stowed when not in use.

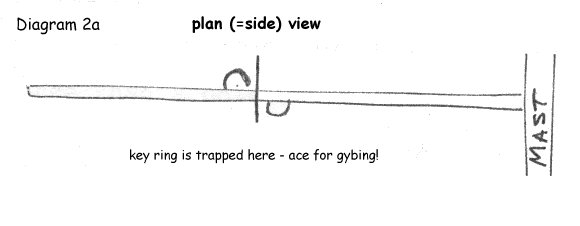

If it is stowed on the boom, then a “keyring” or loop system is best. If a key ring is used, then stopper blocks should be mounted on the sides of the pole on either side of the centreline, so that has only to be twisted through 90º. (Fig. 2a)

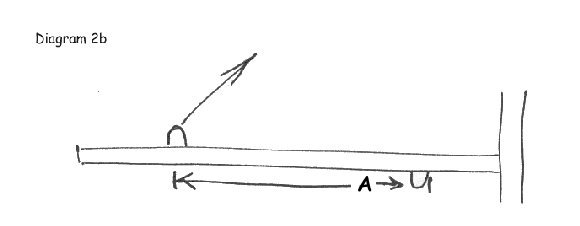

Fig. 2b shows the uphaul attachment points about 2/3 of the length of the pole out from the mast. Some sailors use this system as it makes the uphaul proportionally longer and lets the pole lie parallel to the boom when stowed without further adjustment of the uphaul. But distance A is long and causes problems on gybes because the pole has to be slid out and twisted 180º  to get the key ring past the other uphaul attachment.

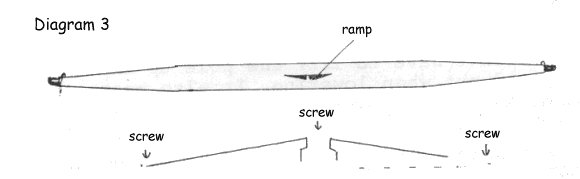

A better alternative to this system is to use a rope loop at the uphaul/downhaul junction instead of the metal keyhole fitting. This means fitting a ramp at the centre of the pole. When the pole is launched, it is simply slid out. The loop slips up and over the ramp and catches in the centre groove of the ramp. It can be left there during the gybe and the pole only has to be twisted through 90º  when it is being retrieved.  Super Spars or Proctor Masts can supply the “ramp”, or one can be made from tufnol. (see diagram 3)
With either of these systems, it is important that, when stowed, the spinnaker pole does not fall off the boom. The best idea is to push its aft end into either a 3” diameter plastic drainpipe or a stainless steel loop which should be positioned 6’0” from the gooseneck. It is also a good idea to fit plastic clips (such as Holt Allen HA238) at the for-ward end of the boom to hold the uphaul/downhaul and prevent the pole from shooting forward.

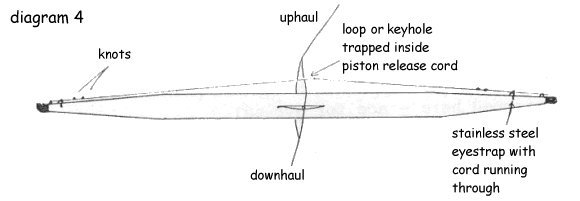

4” from each end of the pole itself, a stainless steel eye should be screwed to the top of the pole at right angles to the pistons. The piston release cord should be led through these with a couple of knots beyond (see diagram 4). The loop or key ring is thus trapped, and therefore cannot twist off the end of the pole, while the knots help the crew to get a grip on the release cord.

If the pole is stowed inside the boat, then the traditional system of using knots in the uphaul/downhaul is adequate. These can then be wedged into V-cleats at the centre of the pole when in use.

Ultimately however, the advantages of stowing the pole along the boom far outweigh its single small drawback of extra weight on the boom. When the pole is not permanently attached to the boat, it is in fact quite easy to lose the pole altogether, say, after capsizing. And poles are rather expensive.

The way to find the best pole height for your spinnaker is to hoist the sail. Clip the pole onto the windward sheet and slide it forward until it touches the spinnaker clew. Now raise the pole at the outer end by pulling on the uphaul until a vertical crease appears from the centre of the head. This means that the sail is too flat and the edges have overtaken the middle.

Then lower the pole to re-tension the leeches just enough to make the crease disappear. That is then as flat as that spinnaker will ever set. In fact it will be rather too flat for light winds, especially when running. Then more leech tension is needed to hold the air in, and to keep the sail flying. In those conditions therefore, lower the pole a touch further. You should find that the outer edge of the pole needs to be 9-18” above the horizontal.

It is very important that there should be no play in the system when the pole is in position, for there is nothing worse than a pole waving about, making a mockery of leech tension. (Uncle Al’s note: You must however, put a bit of slack into the system any time the pole needs to be moved onto or off the pole eye on the mast!!!) Since elastic must be incorporated into the system, you should therefore make sure that the elastic comes only as far as an eye in order to lock things up. The elastic must be in the downhaul part so that the spinnaker does not have to support the weight of the pole. Diagrama 5a and 5b show typical layouts.

Usually it is only necessary to adjust the uphaul part as the elastic below takes up any slack when the uphaul is eased off and the pole lowered. Then the downward pull of the sheets keeps the pole from skying. When reaching, you can re-tension the uphaul, stretching the elastic to its knot, and raising the pole to its reaching position.

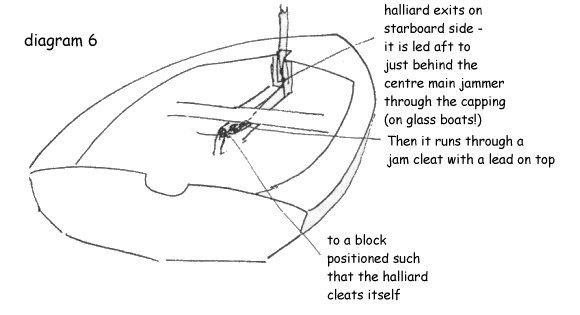

The spinnaker halliard should be led back to the helmsman on the starboard side, to a block and cleat near the back of the centreboard case. (see diagram 6.)

Care should be taken to get the correct positioning as the helmsman will have to hoist whilst steering with the tiller between his legs. With the mainsheet cleated, and yards of halliard to pull, he will have more than enough to deal with.

It is also important to get the positioning of the turning blocks right. The sheets from the spinnaker should lead aft to through deck blocks (such as HA 4701), mounted just forward of the aft bulkhead. They should then be led forward under the side decks to the thwart.

At the thwart, two systems can be used:
1. A turning block such as HA 4978 can be fitted underneath the thwart. After running through this, the sheet can emerge up through a deck sheave such as HA 4910. This should be located about 16-20” from the side of the hull. Cleats should be positioned either at the side or on blocks at each end.

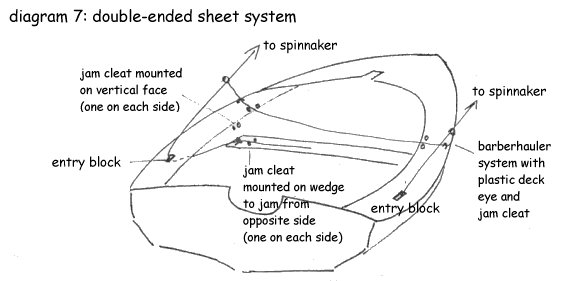

2. If the sheet is to be kept above the thwart, the turning block should be mounted level with the inside face of the side deck. Jam cleats can then be mounted on this vertical inside face of the side deck, and on blocks on the thwart on the other side of the turning block (see diagram 7)

The windward sheet will need controlling on the side deck near the shroud. The simplest system is to use RWO clamcleats such as 217Mk1 and 2l8Mk1. Alternatively, a barberhauler system can be used. With the barberhauler system, the sheet runs through a block which is attached to a line running down to a deck eye and cleat, and which is continuous to the other side. The particular advantage of this system is that it can be pulled on quickly by either helm or crew. Also, in very strong winds, both sides can be partially tensioned to damp down the spinnaker. It also stops the leeward sheet from looping itself over the end of the boom when the sheet is flapping.

The spinnaker sheet should be continuous and be about 68¼ feet long and 6mm in diameter. (ed. note: your Uncle Al finds 58’ of 5mm. to be quite ample!!) The windward part of the sheet should be marked at one of the cleats so that the pole sets just off the forestay. Another mark, on the leeward part, will to pre-cleat the spinnaker for a close reach. These marks are helpful in keeping the pole off the forestay and the spinnaker leech from being overtightened.

Overtightening the spinnaker leech congests the slot between it and the mainsail and the force from the spinnaker is then exerted at right angles to the “keel”, contributing little to speed but a lot to heeling!

Oversheeting is in fact a major problem when flying a spinnaker. Fearful of wrathful comments from their helmsman, many crews will oversheet the spi, simply to stop it from collapsing. What they should be doing in fact, is just keeping the leading edge from collapsing, just so that it is on the verge of curling back at approximately half height. In other words, the object is not to pull the sheets, but rather the reverse, to keep easing and easing. The crew should be trying to get the clews as far away from the boat as possible. Don’t worry about getting the two clews at the same height, except perhaps on a run (when it comes almost automatically). So, if the spinnaker doesn’t collapse on a reach at least once, then it has been oversheeted and is being kept too close to the other sails.

Since the helmsman is constantly altering course to make the most of wind and waves, the crew will have to play the spinnaker all the time. The helm may be able to help with an occasional pull on the windward side.
